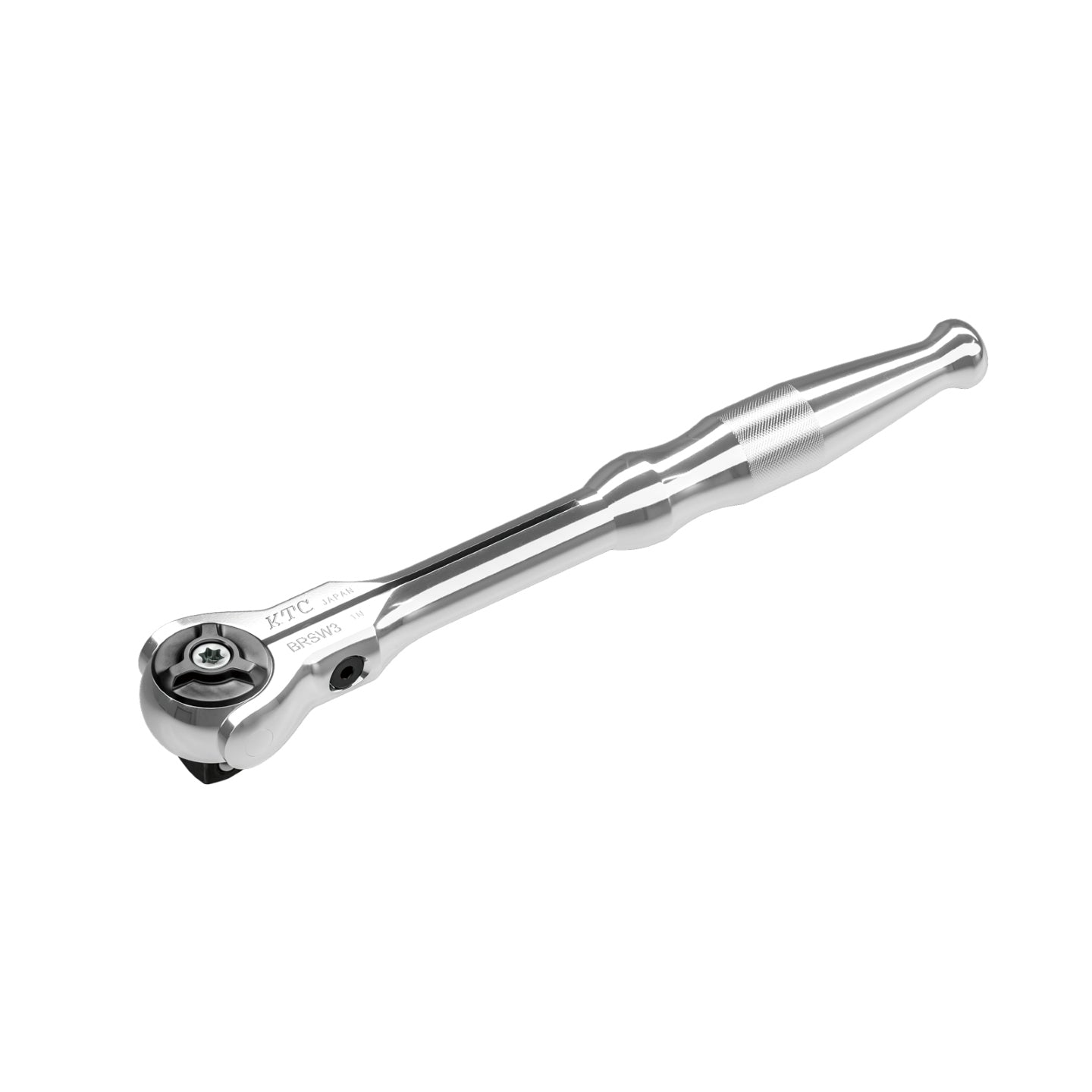

The KTC BRSW3 3/8" Swivel Ratchet is one of the slimmest 3/8" swivel ratchets available, built for tight engine bays and precision fastener work.
With an ultra-compact 32mm ratchet head, it is designed for modern engine bays and confined machinery spaces. Combined with a 72-tooth gear mechanism, the BRSW3 delivers a precise 5° swing arc, allowing effective fastener engagement where larger ratchets cannot operate.

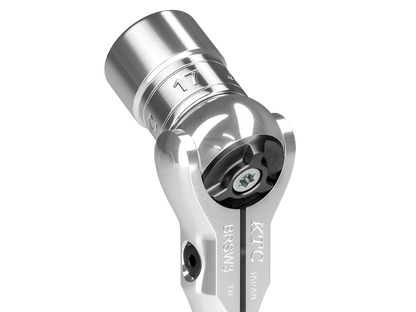

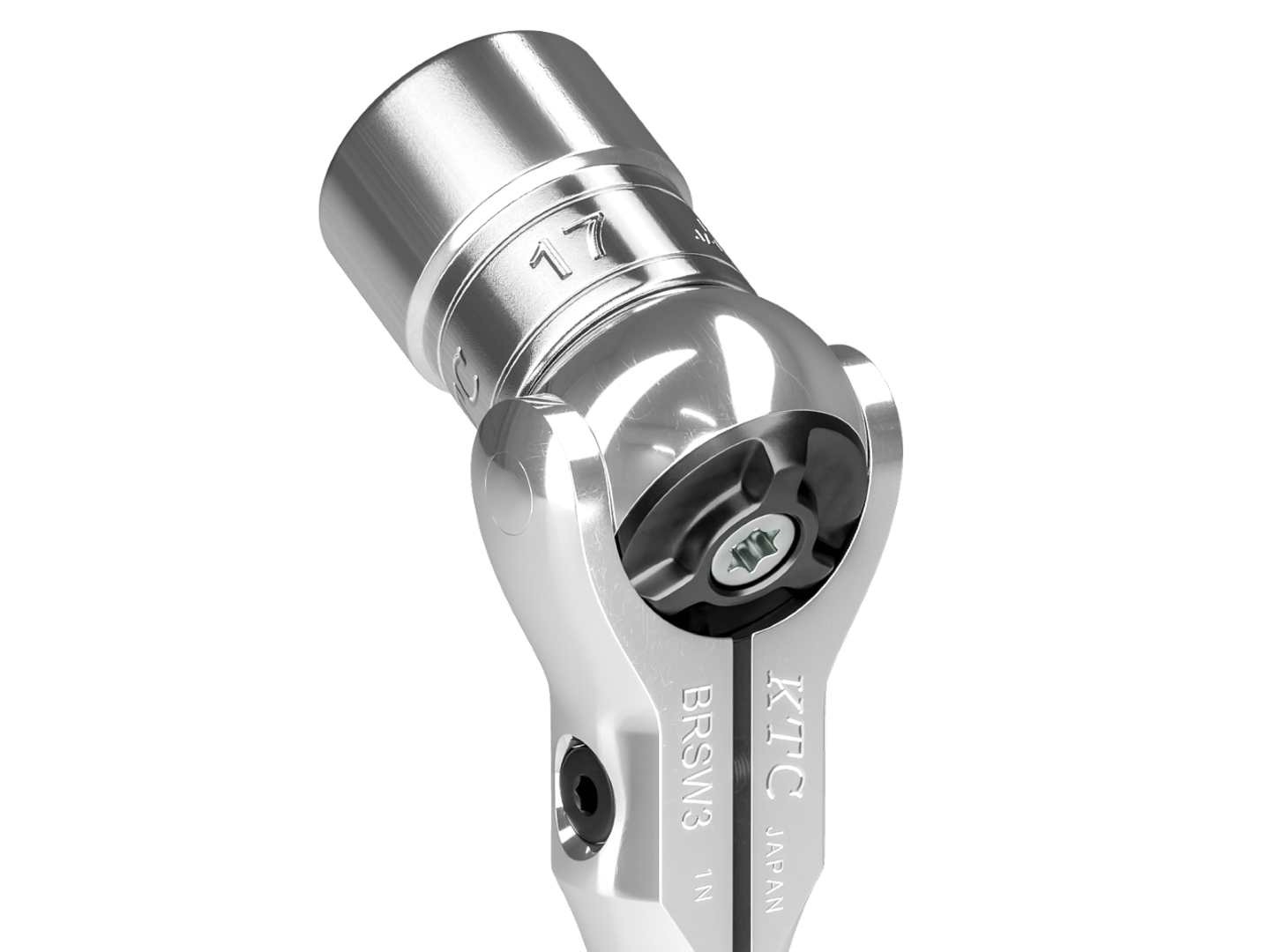

Unlike typical swivel ratchets, the BRSW3 features a dual-function design. The 180° pivoting head provides excellent leverage for tightening and loosening fasteners, while the slim all-steel handle with precision knurling allows the ratchet to be used as a high-speed spinner. When the head is aligned straight, fasteners can be quickly spun in or out using your fingers, greatly improving efficiency during repetitive tasks.

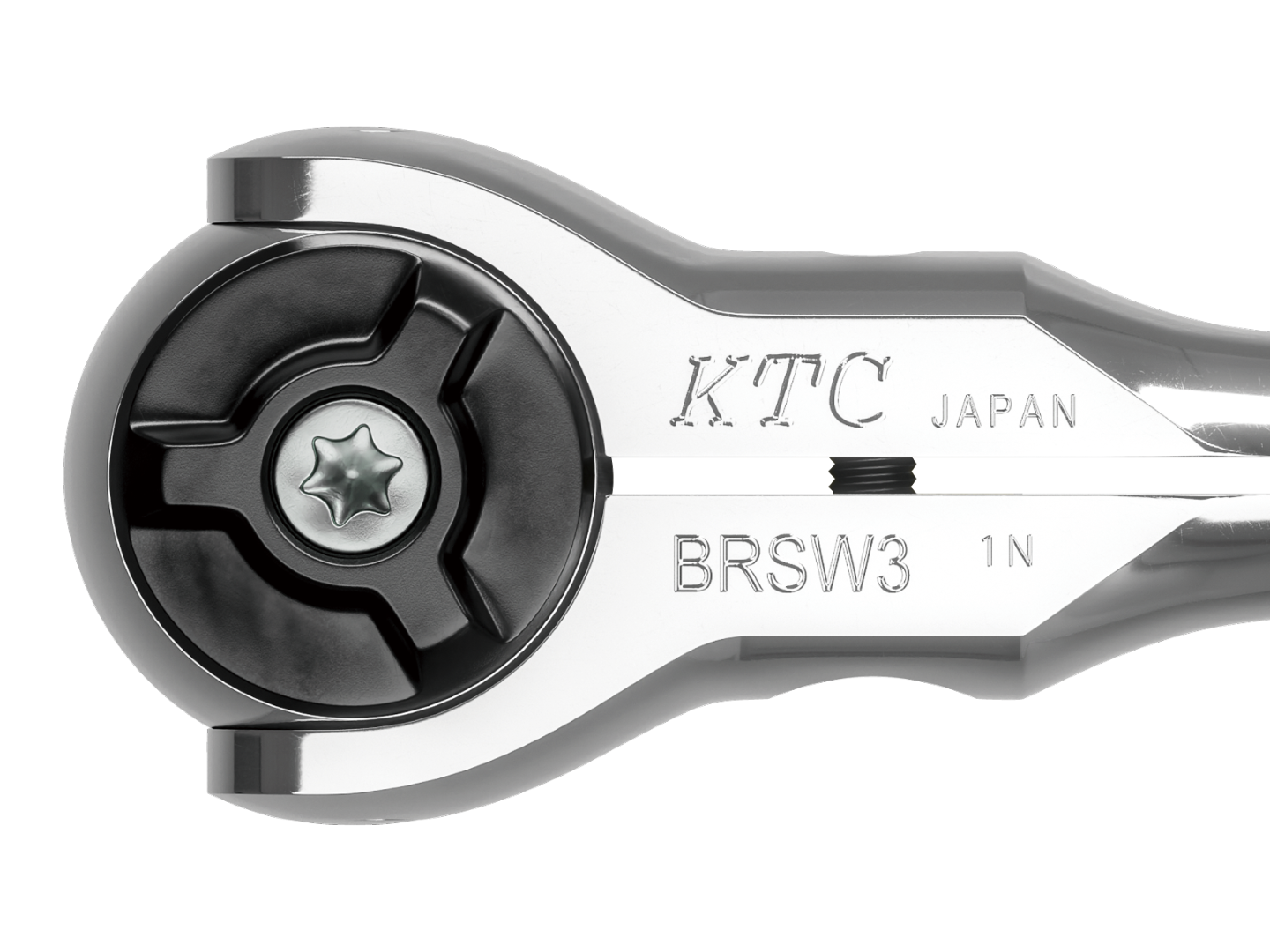

The swivel tension is adjustable via an integrated 2.5mm hex bolt, allowing you to set the resistance so the head stays at your preferred angle. A reinforced neck provides strength for final tightening, while the trident-style direction lever allows quick switching between forward and reverse.
Features:
Ultra-compact 32mm head

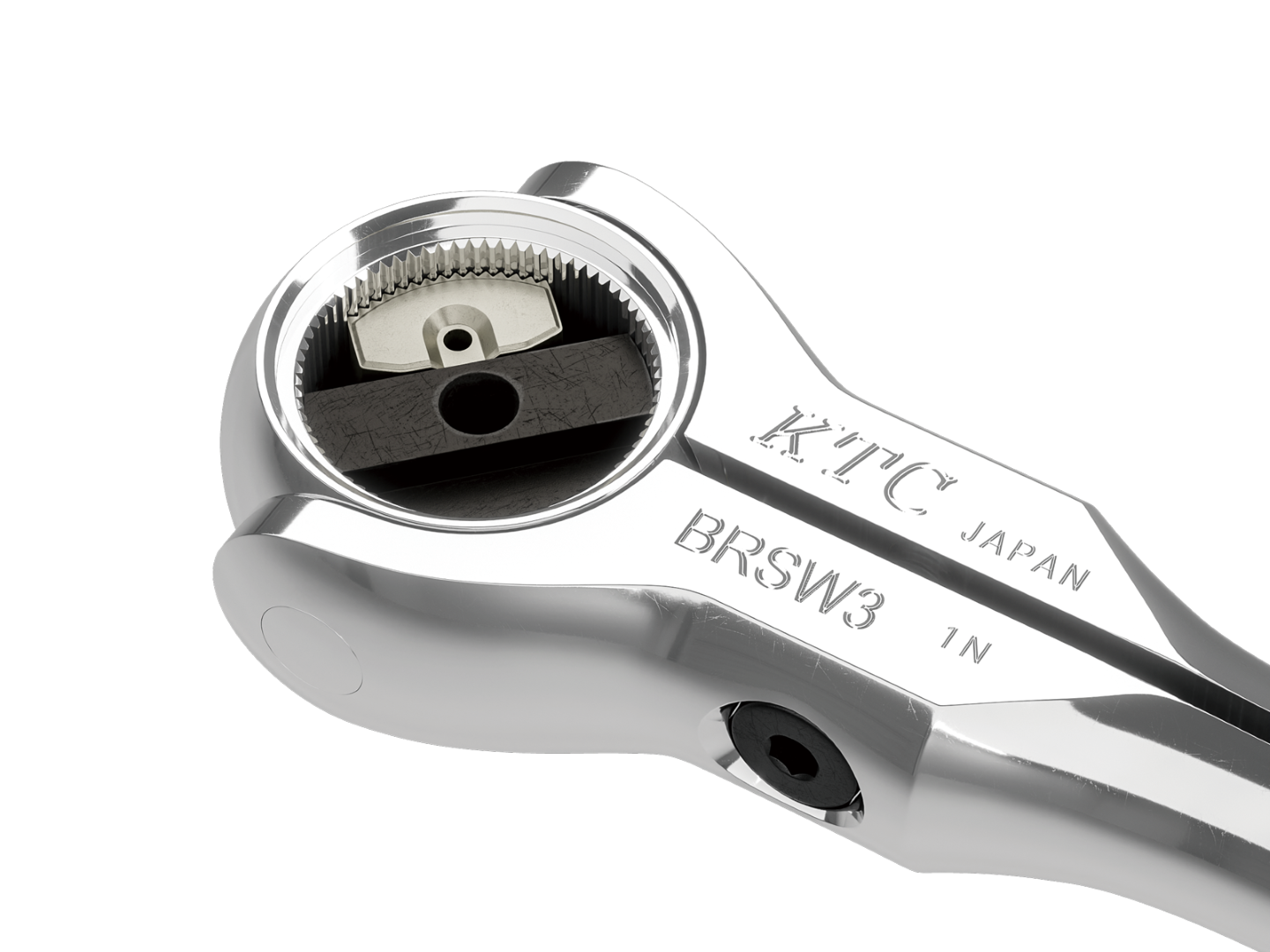

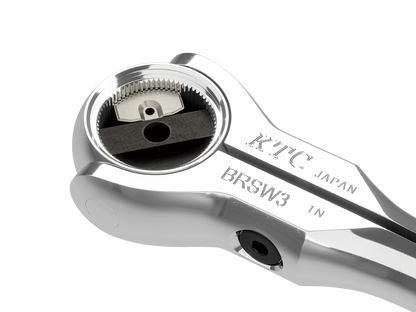

72-tooth ratchet mechanism
5° feed angle

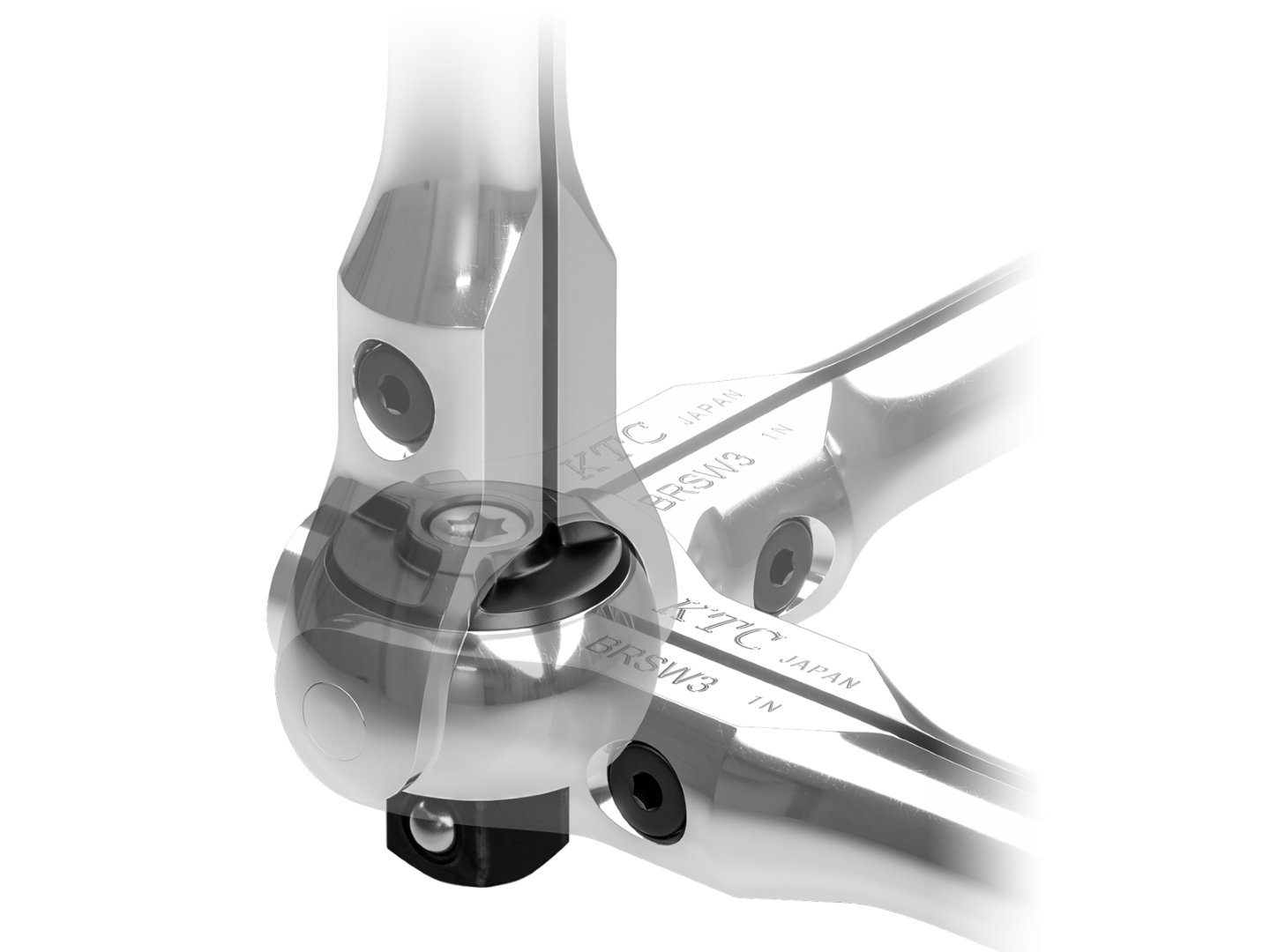

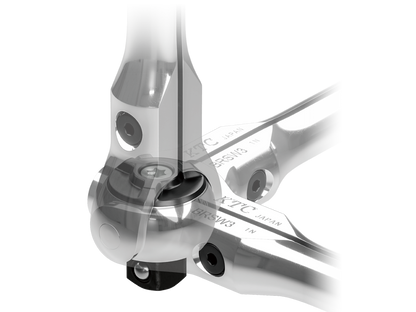

180° pivoting head
Dual-function design - ratchet and high-speed spinner

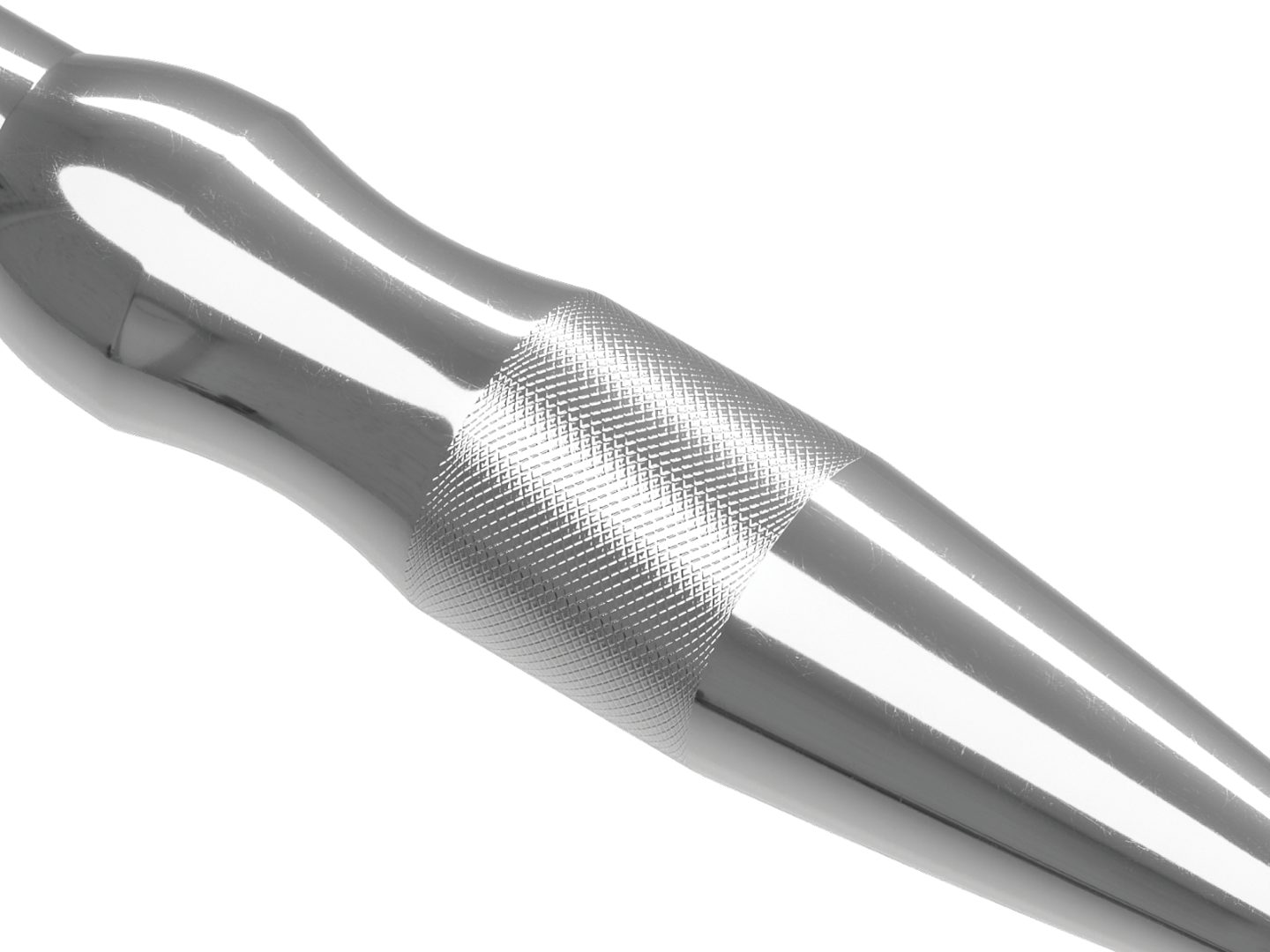

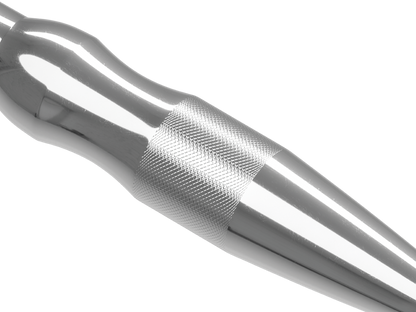

Precision knurled steel handle
Adjustable swivel tension
Reinforced neck for heavy-duty tightening
Serviceable design
Repair kit available (BRSW3-K)
Included:
1 - 180mm 3/8" Swivel Ratchet Handle
Specifications:

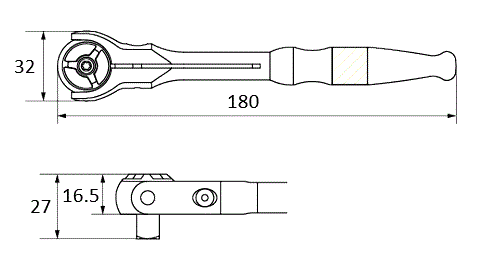

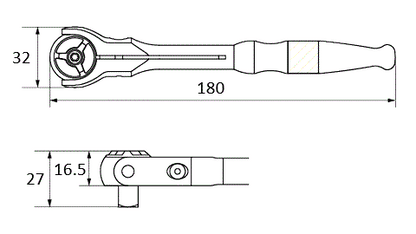

Weight: 260g Feed Angle: 5° Length: 180mm Head Width: 32mm Country of Manufacture: Japan
