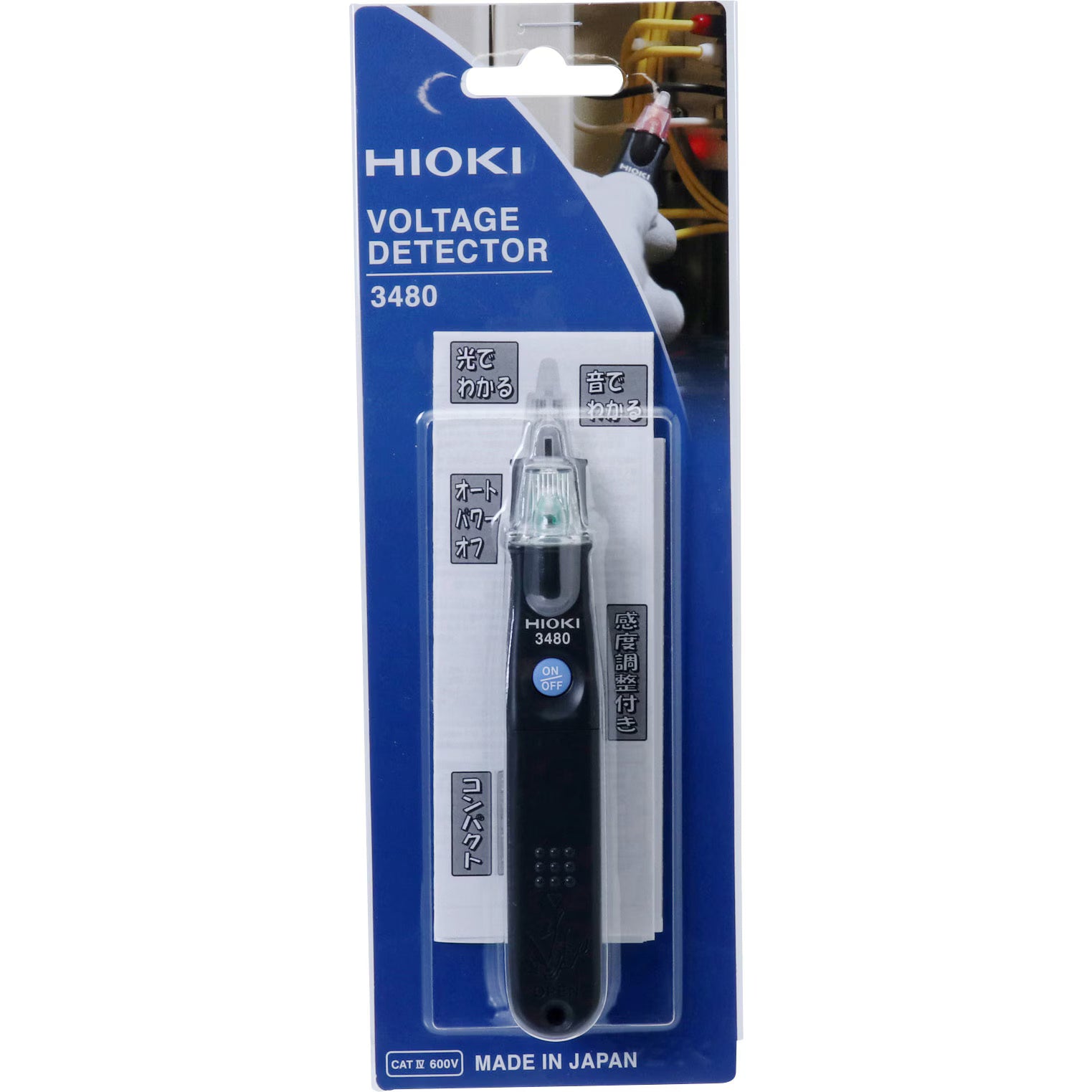

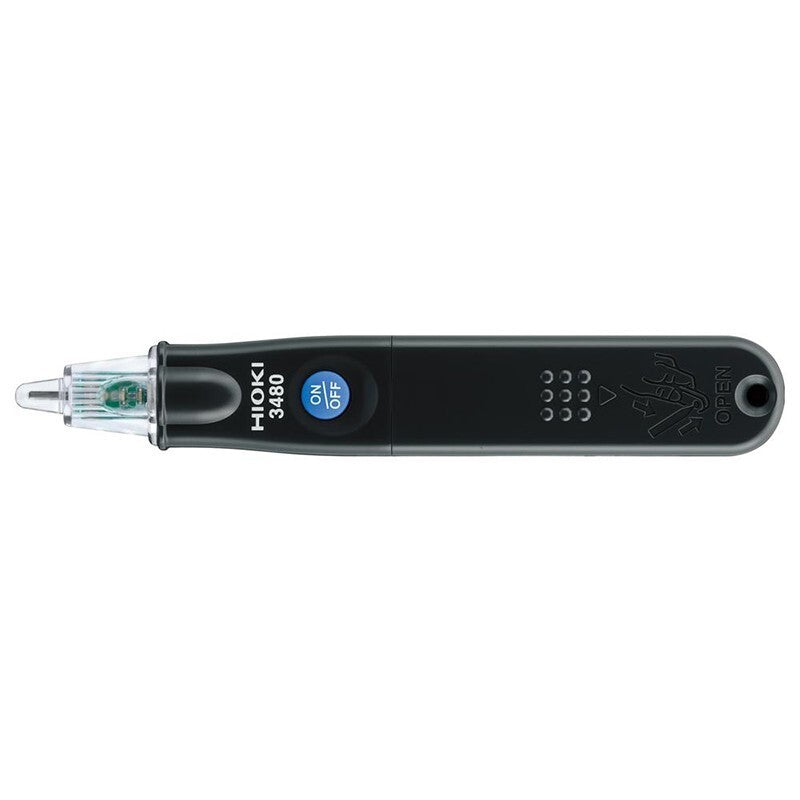

Hioki 3480 Non-Contact Voltage Tester

The Hioki 3480 is a non-contact AC voltage detector designed for quick voltage presence checks in electrical and maintenance work. Measuring just 126 mm in length, it’s a genuinely compact tool that fits easily in a pocket or tool pouch.

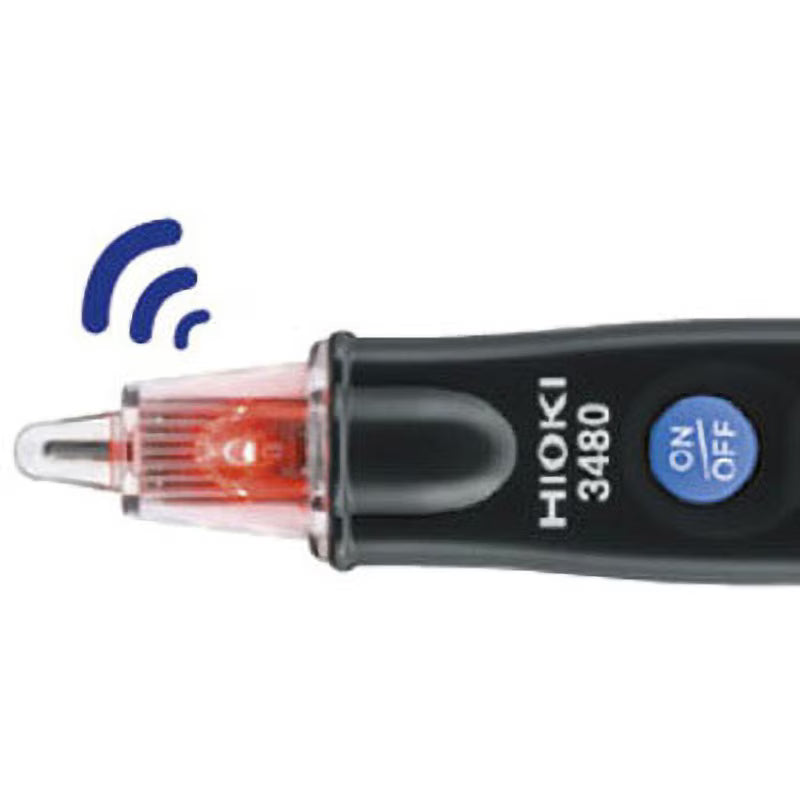

The detector identifies live AC voltages between 40 V and 600 V (50/60 Hz) and provides both visual (red LED) and audible (buzzer) indications when voltage is detected. An adjustable sensitivity control lets you fine-tune detection in different environments or when working near adjacent conductors.

Powered by two LR44 button batteries, the 3480 offers approximately 15 hours of standby operation. A green LED shows battery status on startup, and the built-in auto power-off feature conserves energy by switching off after about three minutes of inactivity. Its CAT IV 600 V rating supports use in general electrical work, switchboards, and maintenance settings where quick voltage presence checks are needed.

Features:

• Non-contact detection for safer checking
• Detects voltage between 40 V - 600V, 50/60 Hz
• CAT IV 600V Safety Rating
• Slim, pen style design
• Compact size (126x20x15mm)

• Lightweight at just 30g including batteries
• Red LED and buzzer alert for voltage presence
• Adjustable sensitivity
• Green LED to indicate battery health
• Auto off after 3 minutes of inactivity to save battery


Included:

1 - 3480 Voltage Tester
2 - LR44 Button Batteries
1 - Instruction Manual (Japanese)

Specifications:

Operating Voltage Range: 40V - 600V AC
Sensitivity Variable Range: 40V - 80V (80V when shipped)
Operating Frequency: 50/60 Hz
CAT Rating: CAT IV 600V
Power Supply: 2x LR44 Button Batteries
Battery Life: Approximately 15 hours (Powered on, standby)
Dimensions: 20Wx126Hx15D mm
Weight: Approximately 30g including batteries
Operating Altitude: Up to 2000m indoors
Operating Temperature: 0 °C – 40 °C, ≤ 80 % RH
Storage Temperature: –20 °C – 60 °C, ≤ 80 % RH
