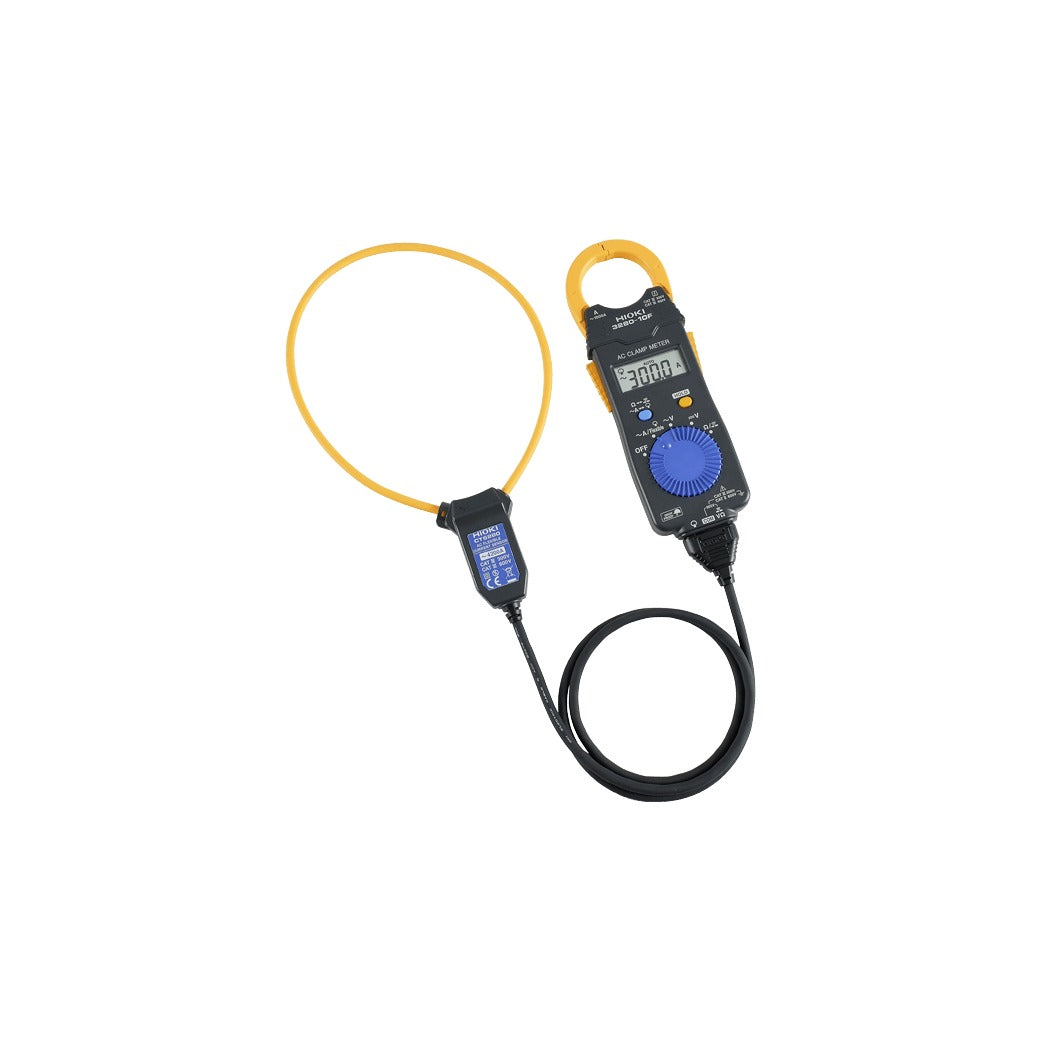

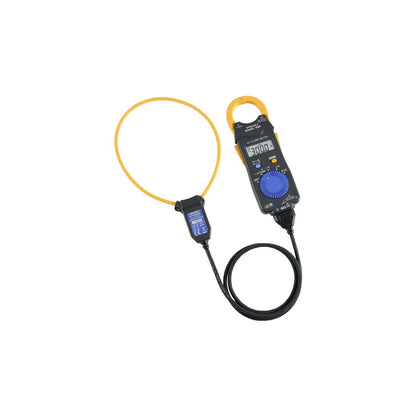

Hioki 3280-70F AC Clamp Meter with Flexible Current Sensor

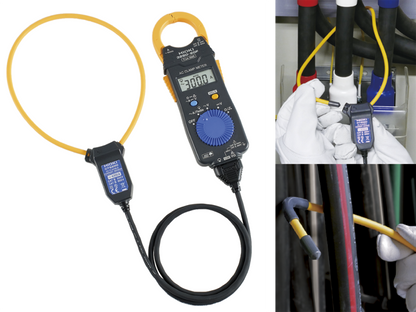

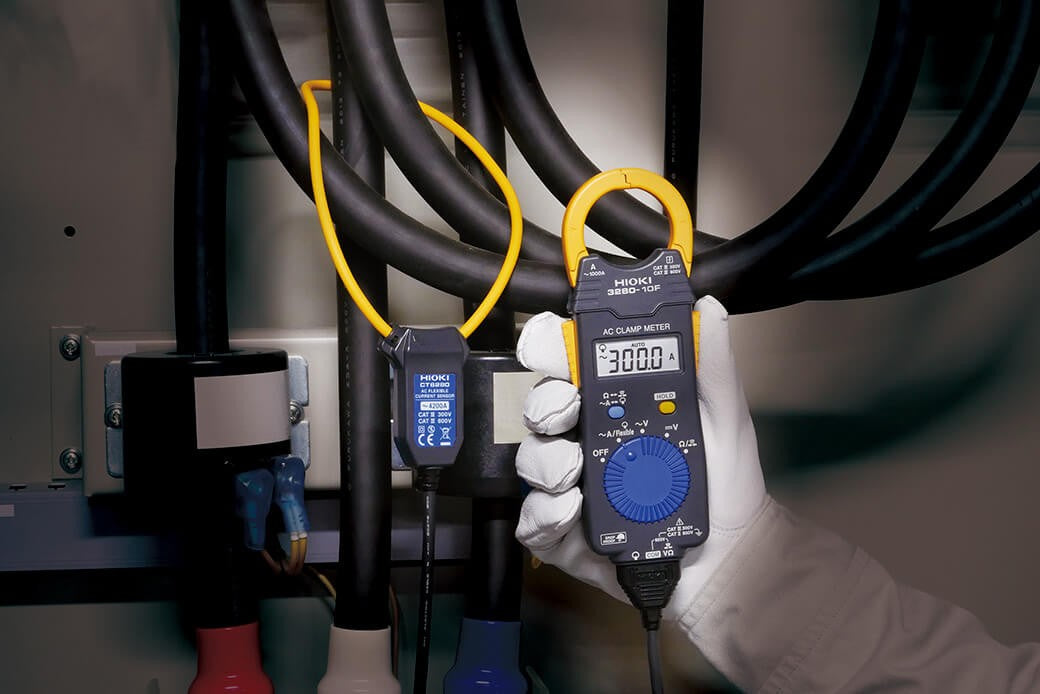

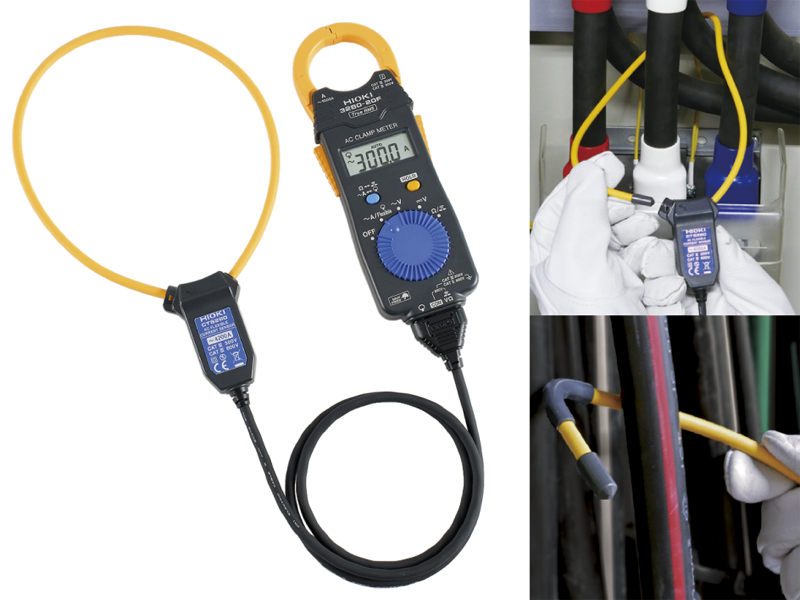

The Hioki 3280-70F is a compact AC clamp meter kit designed for reliable current measurement on standard 50/60 Hz AC systems. It pairs Hioki’s slim clamp meter, small enough to fit into a pocket, with the CT6280 flexible current sensor, making it ideal for measuring current on large conductors, bundled cables, or crowded switchboards, where a conventional clamp won’t fit.

The meter measures AC current up to 1000 A, with the flexible sensor extending the range up to 4199 A. It also supports AC/DC voltage measurement up to 600 V, resistance measurement, continuity with buzzer, and data hold, covering the most common checks required for electrical installation and maintenance work.

Built to Hioki’s industrial standards, the unit is drop-resistant (1 m), operates across a wide temperature range of -25 °C to 65 °C, and runs for extended periods on a single CR2032 lithium battery, making it a practical everyday tool on site.

Important Note

This meter uses a mean-responding measurement method calibrated for RMS on sinusoidal waveforms. It is best suited to standard mains power applications and is not intended for heavily distorted or non-sinusoidal signals such as inverter outputs or variable-frequency drives.

Features:

• Compact size

• Voltage range up to 600V AC/DC
• Easily measure current on large or bundled cables
• Broad temperature operating range
• Built to withstand 1 metre drop onto concrete
• 120 Hours of continuous use on one battery


Included:

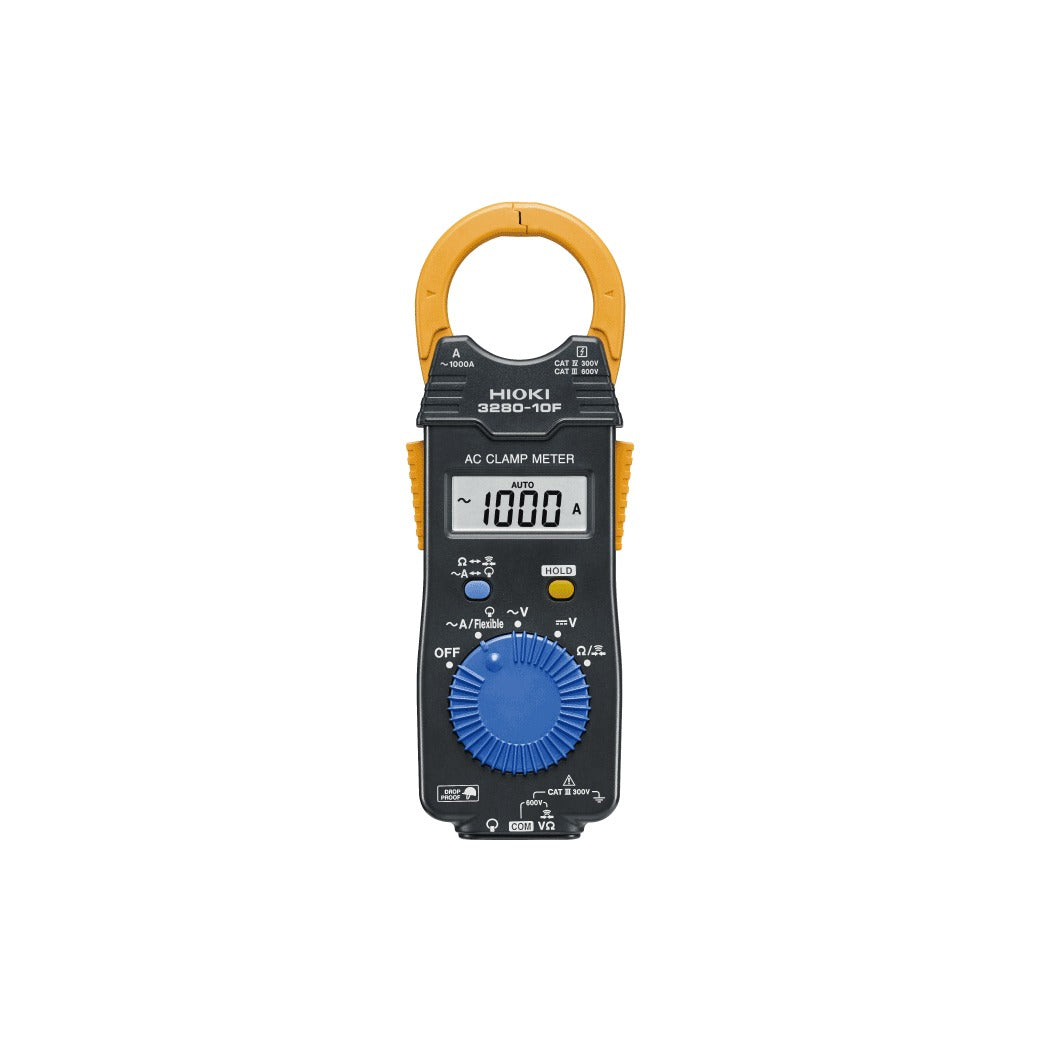

1 - 3280-10F AC Clamp Meter
1 - CT6280 AC Flexible Current Sensor
1 - L9208 Test Leads

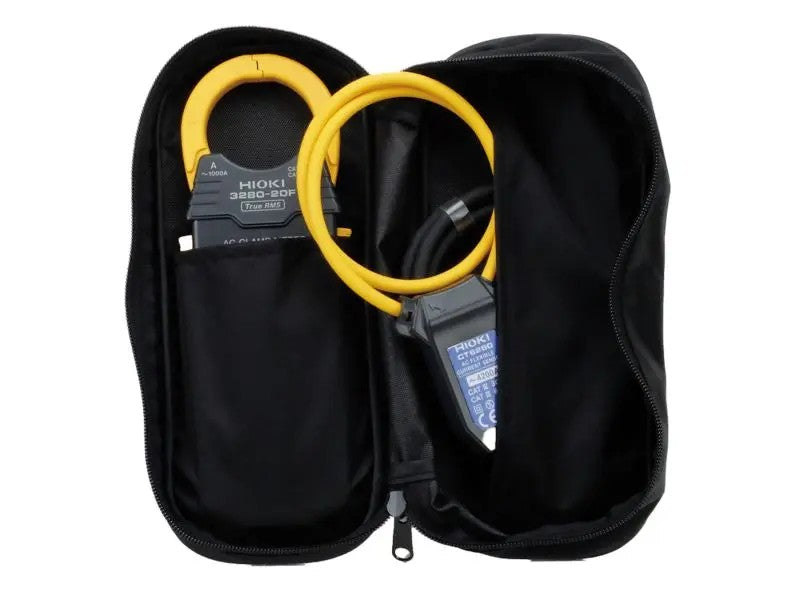

1 - Carrying Case
2 - Tip sleeves
1 - CR2032 Button cell battery
1 - Instruction Manual (Japanese)

Documentation:

Download English Manual (PDF) - Complete operating manual for the Hioki 3280-10 AC Clampmeter

Specifications:

AC Current Range: 41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage Range: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage Range: 4.199 V to 600 V, 4 ranges, (45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Resistance Range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
Other Functions: Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Diode Check: Not available
Display: LCD, max. 4199 dgt., Display refresh rate: 400 ms
Environmental Protection: IP40 dustproof and waterproof (while in storage)
Power Supply: CR2032
Battery Life: 120 hours continuous use
Core jaw diameter: φ 33 mm
Dimensions and mass: 57 mm W × 175 mm H × 16 mm D, 100 g
Country of Manufacture: Japan

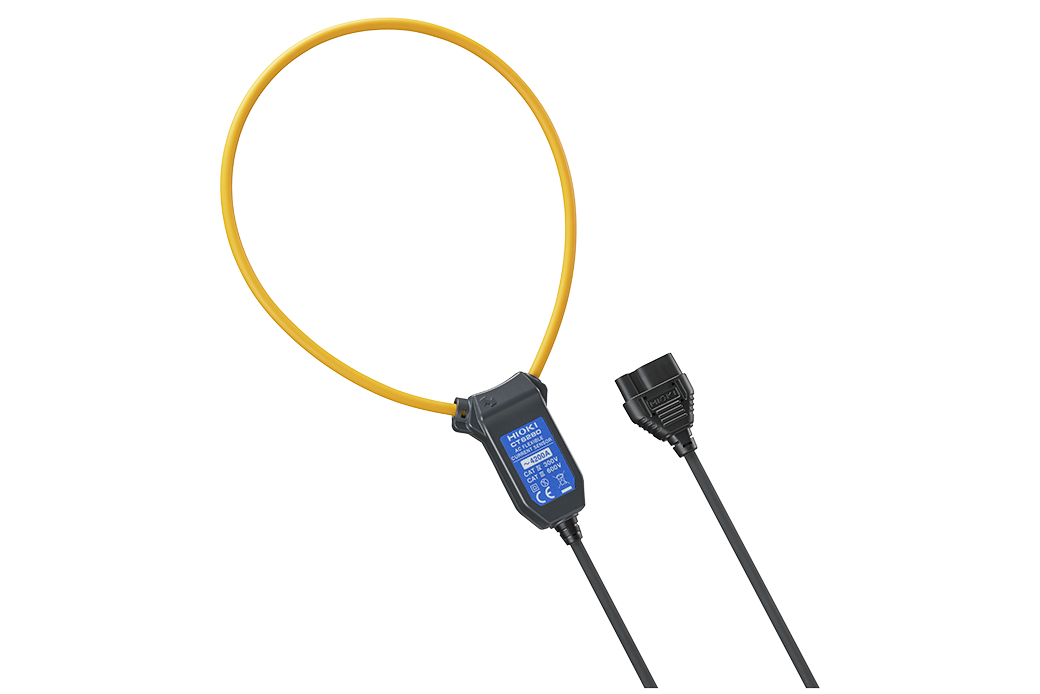

CT6280 Specifications
Core jaw diameter: φ 130 mm (Cable cross-section diameter: 5 mm; tip cap diameter: 7 mm)
AC Current: 419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length: 800 mm (31.5 in)
