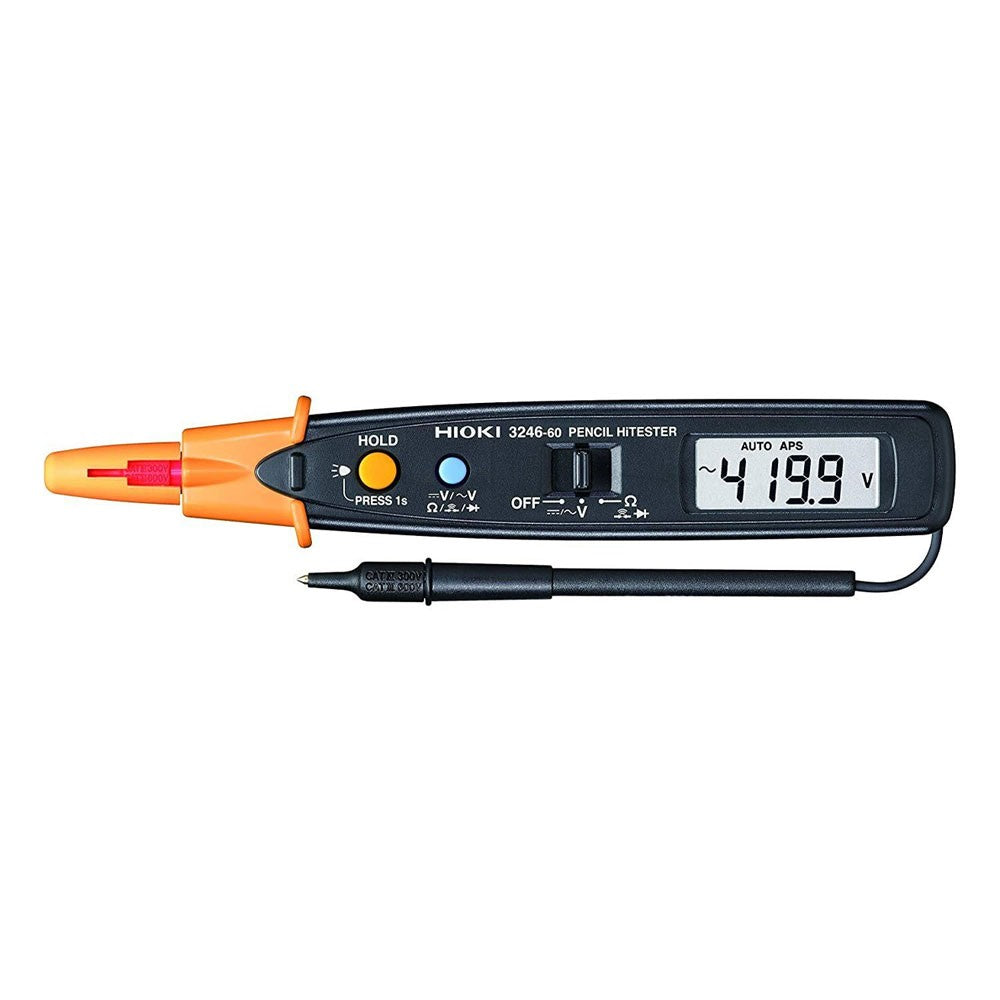

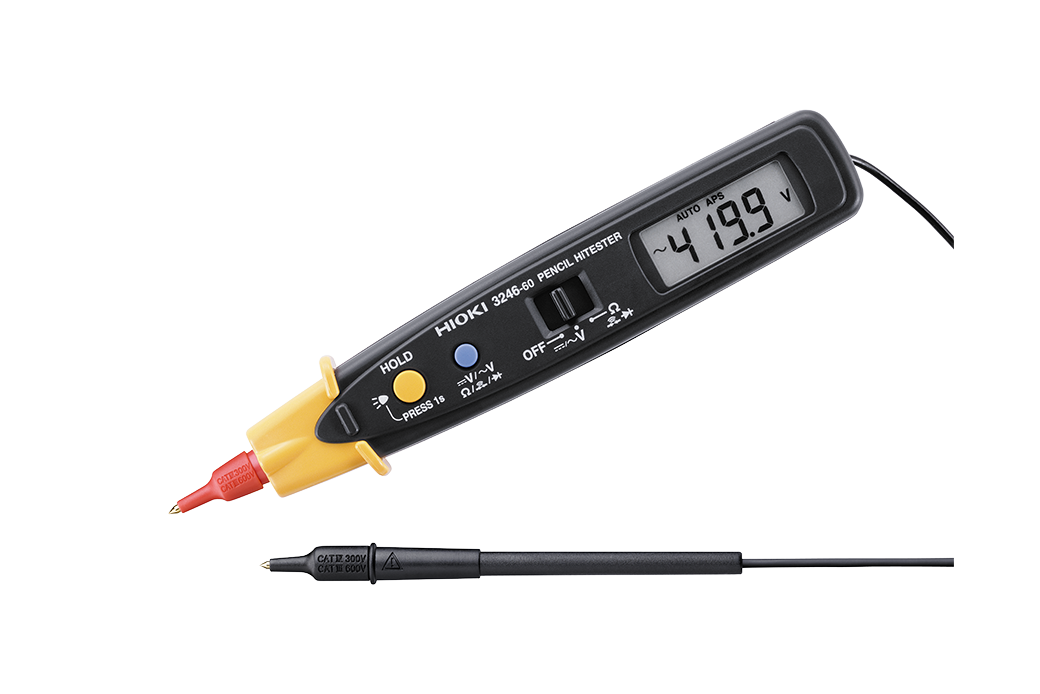

Hioki 3246-60 Pencil HiTester Digital Multimeter

The Hioki 3246-60 is a pen-sized digital multimeter, designed for general electrical maintenance and testing. With a length of 182 mm and weighing just 80 grams, it’s perfect for saving space and weight in your tool bag or for easily carrying in your pocket.

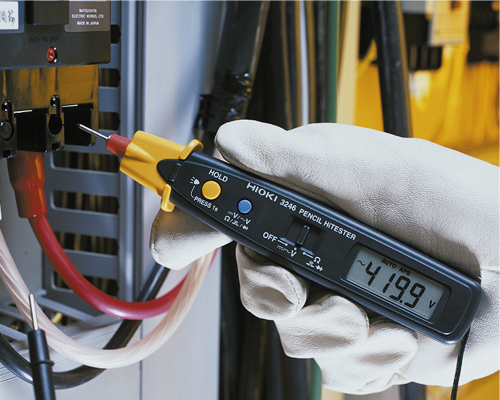

This tester comes with a CAT II 600V rating by default, but with the included tip sleeves, it is upgraded to a CAT III 600V rating. This makes it safe for use with standard residential and commercial lighting and power circuits. The Hioki 3246-60 can measure both AC/DC voltage, resistance, continuity, and includes a diode test function. It also features a handy LED tip light, making it ideal for use in low-light conditions.

Features:

• Measures AC/DC Voltage up to 600V
• Slim, pen style design
• Integrated test leads and hard cap for convenience and protection

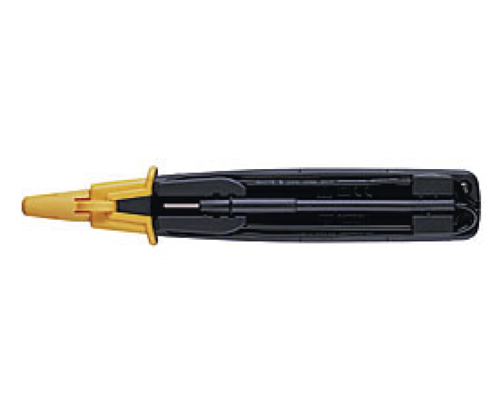

• Space for stowing test leads on the back of the instrument

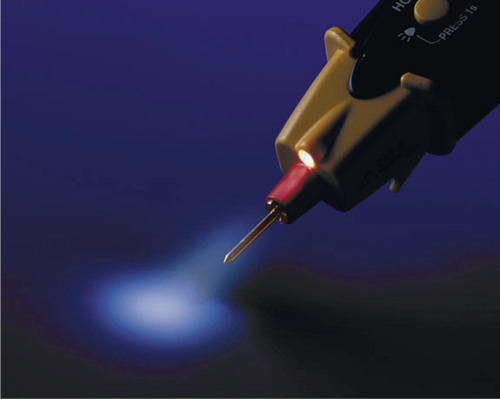

• LED tip light for dim environments

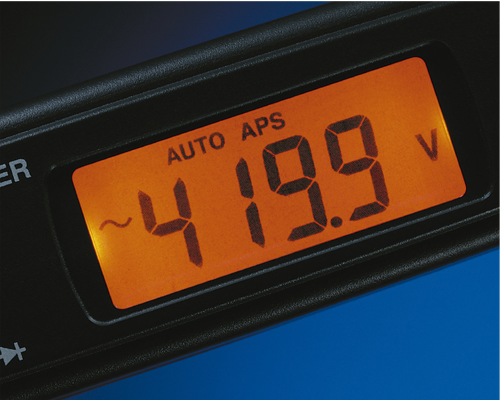

• Backlit display (activates with LED light)


Included:

1 - 3246-60 Tester
1 - CR2032 Battery
2 - Tip sleeves
1 - Instruction Manual (Japanese)

Specifications:

DC Voltage Range: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage Range: 4.199 V to 600 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
Resistance Range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity Buzzer: Detection level 50 Ω ±40 Ω
Diode Check: Judges the right direction only, Open terminal voltage: 3.4 V or less, Testing current: 800 µA or less
Auto power save (APS): Available (disable by holding light button while powering on)
Display: Digital LCD, max.4199 digits
Sampling Rate: 2.5 times/sec
Power Supply: CR2032
Battery Life: 150 hours continuously using DC V function, 30 hours with light on for 10 seconds and off for 20 seconds per cycle and in DC V function
Body Width: 30mm
Body Height: 182mm
Body Depth: 26.5mm
Weight: 80g
Country of Manufacture: Japan
