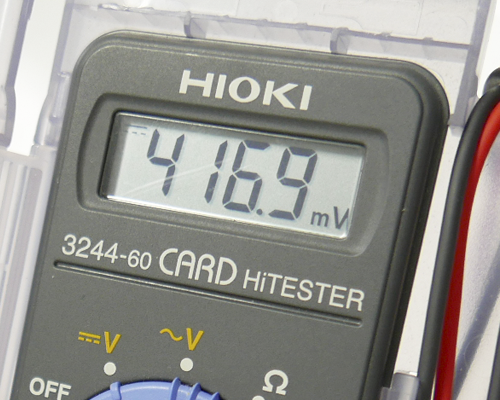

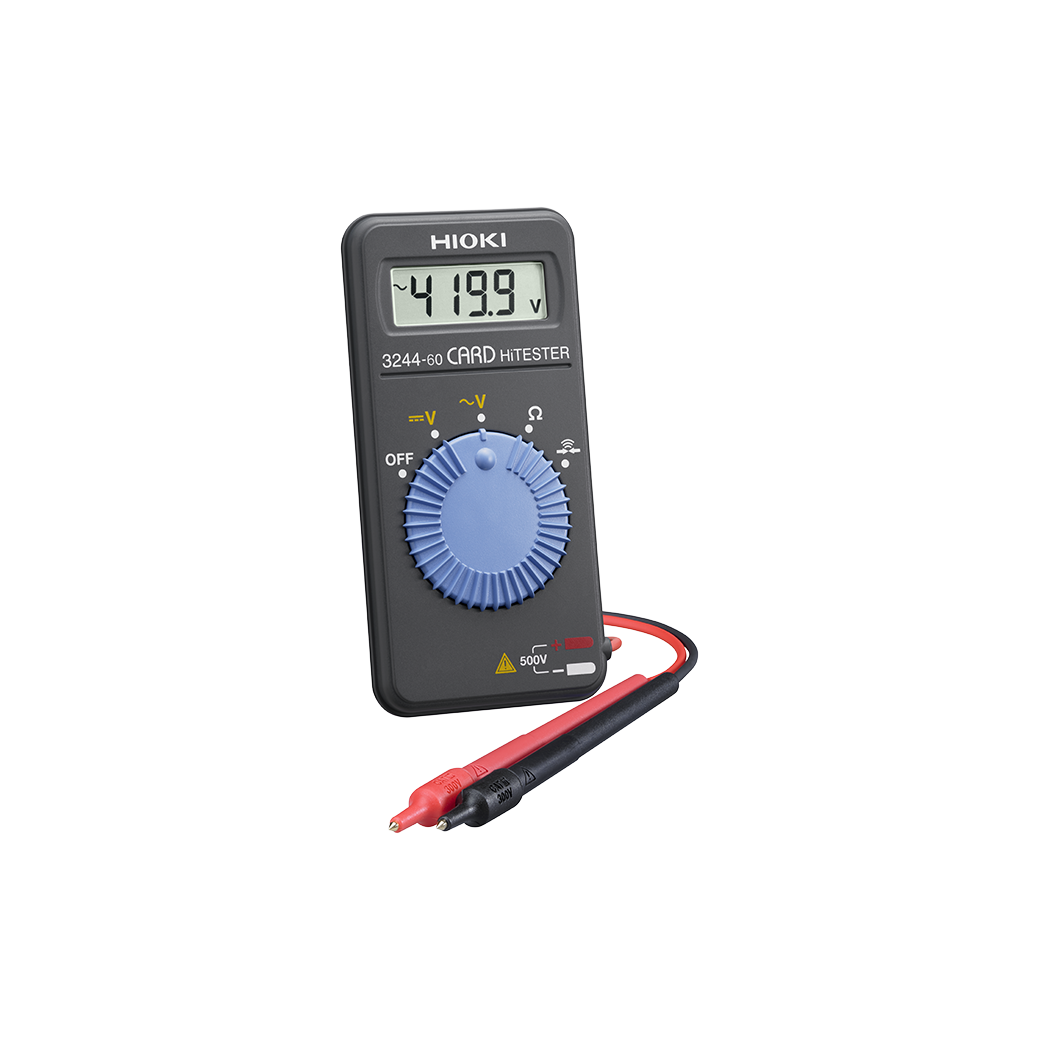

Hioki 3244-60 Card HiTester Digital Multimeter

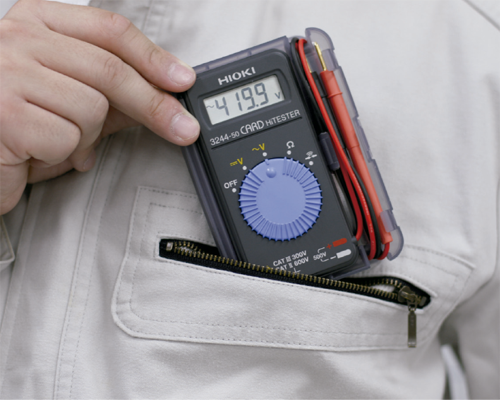

The Hioki 3244-60 is a slim, card-sized digital multimeter intended for routine electrical testing and maintenance work. With dimensions of 55 mm × 109 mm × 9.5 mm, it is only marginally larger than a business card, allowing it to be carried comfortably in a pocket or compact tool pouch.

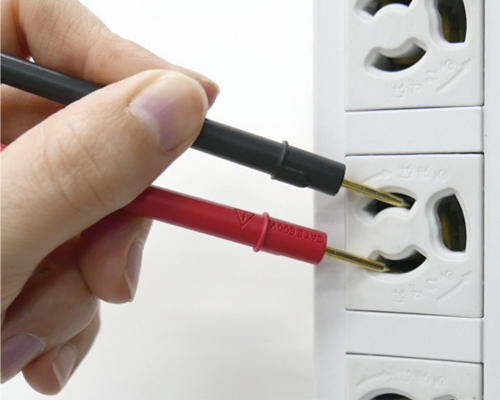

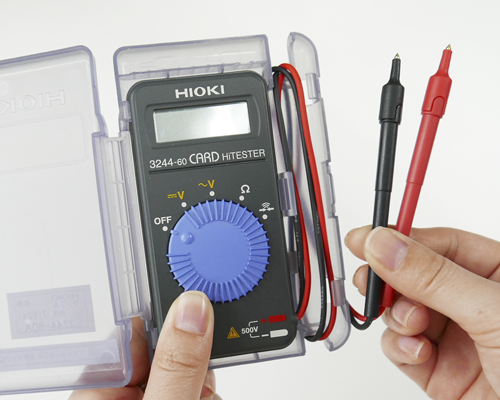

Its low-profile design and light weight make it easy to keep on hand, while the supplied hard case protects the meter when not in use. The case also doubles as a storage solution for the test leads, which can be wrapped neatly around the exterior to prevent tangling. The included leads are fitted with 15 mm gold-plated probe tips, providing consistent contact when working with recessed sockets and terminals.

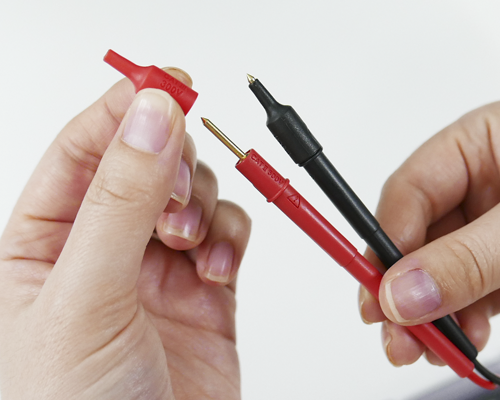

The 3244-60 supports measurements up to CAT III 300 V and CAT II 600 V. Detachable probe tip sleeves are included to help reduce the risk of short circuits when working in confined or closely spaced terminals. The result is a compact multimeter that prioritises portability and everyday usability without unnecessary bulk.

Features:

• Measures AC/DC Voltage up to 500V
• Compact size

• Light weight
• Comes with a protective hard case
• Long gold-plated tips
• CAT III 300V or CAT II 600V rating
• Detachable probe tip sleeves to prevent short circuits

Included:

1 - Card style multimeter
1 - Carrying Case
1 - CR2032 Battery
2 - Tip sleeves
1 - Instruction Manual (Japanese)

Documentation:

Download English Manual (PDF) - Complete operating manual for the Hioki 3244-60 multimeter

Specifications:

DC Voltage Range: 419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt.
AC Voltage Range: 4.199 V to 500 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
Resistance Range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity Buzzer:  Detection level 50 Ω ±40 Ω
Diode Check: Not available
Auto power save (APS): Available (cancel selectable)
Display: Digital LCD, max. 4199 digits
Sampling Rate: 2.5 times/sec
Power Supply: CR2032
Battery Life: 150 hours continuous use
Body Width: 55mm
Body Height: 109mm
Body Depth: 9.5mm
Weight: 60g
Country of Manufacture: Japan
